» Hydraulic Pump

We provide the Hydraulic Pump of Pump Section to the clients. The product is made of the best quality.

Model Code : 3020
Direction of Rotation : Clockwise
Drive Shaft : Parallel
Body Port : Threaded
Reference (for all) : Dimension Catalogue

Product Details :

Model Code	3020
Direction of Rotation	Clockwise
Drive Shaft	Parallel
Mounting Flange	SAE
Standard	B
Reference (for all)	Dimension Catalogue
Body Port	Threaded
Frame Size	1P

Ask for Price

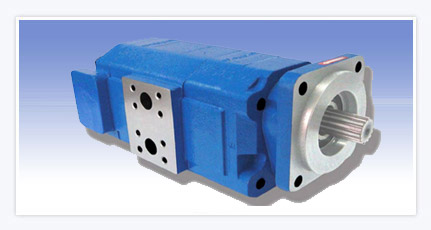

Single Inlet /Dual Outlet Hydraulic Pump

Gear pump 360 and 460 series pumps large displacement sleeve bushing pumps.

Model Code : P360 & 460 Series Tandem

Product Details :

Brand	BELL HYDROMATICS
Nominal Displacement	UP TP 300 cc/rev
Max Flow Rate	450 LPM
Design Type	GEAR
Model Name/Number	P 360
Motor Speed	2000 RPM
Discharge	400 LPM
Maximum Pressure	150-200 bar
Type Of Pump	External Gear Pump
Usage/Application	HYDRAULICS
Maximum Discharge Flow	400 LPM
Installation / After Sales Service	Provided

Single Inlet /Dual Outlet Hydraulic Pump

Ask for Price

Performance Data For OP Group

Pump Type	Nominal Displacement	Nominal Delivery @ 1500 rpm & Pressure P	Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
	Cc/rev	Lpm	Psi	Bar	Max	Min
3003	0.8	1.2	3000	207	4000	500
3004	1.2	1.8	3000	207	4000	500
3006	1.67	2.5	3000	207	4000	500
3008	2.27	3.4	3000	207	4000	500
3011	3.2	4.8	3000	207	4000	500
3013	3.87	5.8	3000	207	4000	500
3015	4.53	6.8	3000	207	4000	600

Performance Data For 1P Group

Pump Type	Nominal Displacement	Nominal Delivery @ 1500 rpm & Pressure P	Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
3017	5.13	7.7	3000	207	3500	500
3020	6.07	9.1	3000	207	3500	500
3028	8.47	12.7	3000	207	3500	500
3036	10.93	16.4	3000	207	3500	600
3044	13.33	20	3000	207	3500	500
3052	15.73	23.6	3000	207	3500	600
3060	18.2	27.3	3000	207	3500	650
3072	21.8	32.7	2525	174	3000	650
3090	27.27	40.9	2000	138	2400	650

Performance Data For 2P Group

Pump Type	Nominal Displacement	Nominal Delivery @ 1500 rpm & Pressure P	Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
3050	15.13	22.7	3000	207	3000	550
3070	21.33	32	3000	207	3000	550
3090	27.33	41	3000	207	3000	650
3105	31.8	47.7	3000	207	3000	600
3120	36.33	54.5	3000	207	3000	650
3146	44.33	66.5	2525	174	2500	650
3158	47.87	71.8	2525	174	2500	650
3220	66.67	100	2000	138	2500	650

Performance Data For 3P Group

Pump Type	Nominal Displacement	Nominal Delivery @ 1500 rpm & Pressure P	Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
3150	45.33	68	3000	207	2500	550
3180	54.33	81.5	3000	207	2500	600
3210	63.67	95.5	3000	207	2500	700
3250	75.67	113.5	3000	207	2500	700
3300	90.67	136	2525	174	2500	700
3330	100	150	2300	159	2500	700
3380	115.33	173	2000	138	2500	700
3500	151.33	227	1500	100	2500	700

OP-Installation Chart

OP-3015	42.2	84.5	½”
OP-3013	41.5	83.1	½”
OP-3011	40.8	81.7	3/8”
OP-3008	39.9	79.7	3/8”
OP-3006	39.1	78.2	3/8”
OP-3004	38.6	77.1	3/8”
OP-3003	38.1	76.3	3/8”
Pump Type	DIM-X	DIM-Y	THD (X) BSP

2P-Installation Chart

2P-3220	81.7	167.8
2P-3200	72.8	150
2P-3180	69.7	143.8
2P-3158	74.3	153
2P-3146	72.8	150
2P-3120	69.7	143.8
2P-3105	67.9	140
2P-3090	59.1	122.6
2P-3070	56.7	117.7
2P-3050	54.3	113
Pump Type	DIM-X	DIM-Y

1P-Installation Chart

1P-3090	63.3	127.7	¾”
1P-3072	60	121	¾”
1P-3060	57.7	116.4	¾”
1P-3052	56.2	113.3	¾”
1P-3044	54.6	110.3	¾”
1P-3036	45.6	92.2	¾”
1P-3028	44.1	89.1	½”
1P-3020	42.5	86.1	½”

3P-Installation Chart

3P-3150	70.1	145.2
3P-3180	72.5	150
3P-3210	74.9	154
3P-3250	78.1	161.2
3P-3300	82.1	169.1
3P-3330	84.6	174.3
3P-3380	88.6	182.3
3P-3500	96.9	202.8
Pump Type	DIM-X	DIM-Y

Pump Slection

1P	3020	C	P	S	T	B
Frame Size Ref.Dimension Catalog	Model Code Ref.Dimension Catalog	Direction of Rotation C-Clockwise A-Anticlockwise	Drive Shaft P-Parellel T-Taper1.8	Mounting Flange S-SAE A 2 Bolt D-4 Bolt	Body Port T-Threaded S-SAE STD.	Standard
